NEW PRODUCT DEVELOPMENT
We have in-house designing Facility and specialized human resource for designing patterns and fixtures using software like DelCam10 & Autocad.

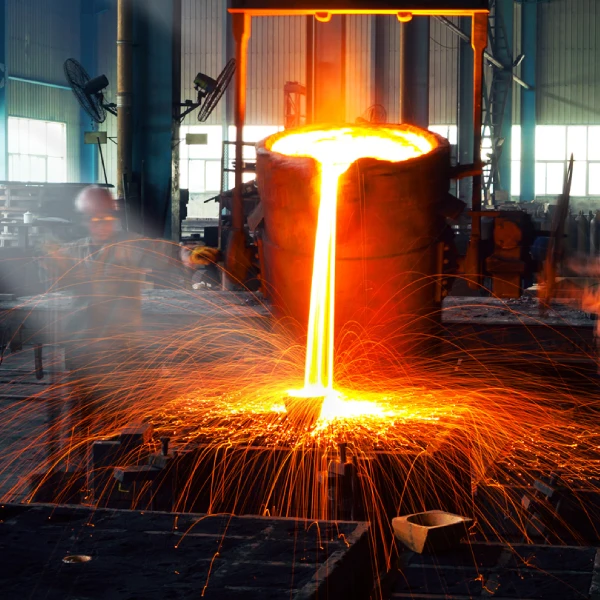

Melting Facility
- Arc Furnace 5000 Kg
- Induction Furnace 1000 Kg
- Induction Furnace 500 Kg

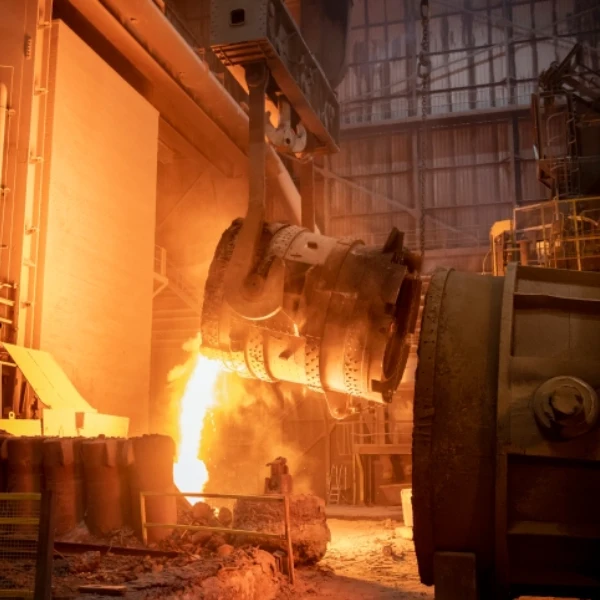

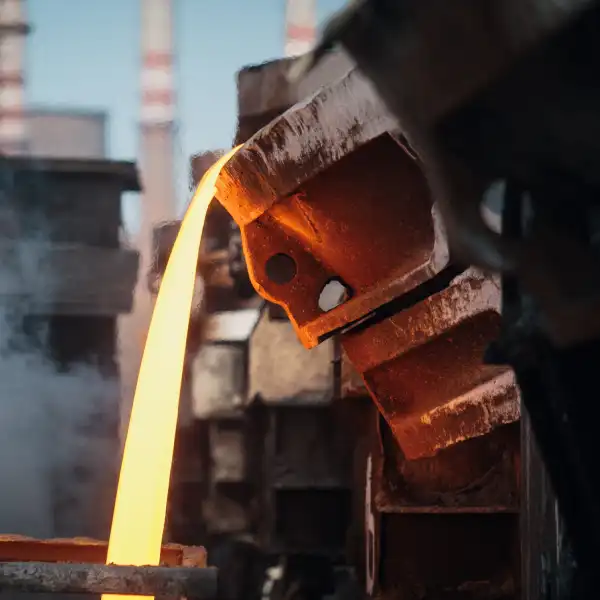

Pouring Facility
- Time & hooter for SG timely pouring
- Lip pouring laddle 500kg & 1000kg
- Cordless temperature monitoring
- Hydraulic pusher pouring line
- Mono rail for metal pouring
- Over head crane
.webp)
Sand Prepration
PLC control automatic sand plant of capacity 40 MT/Hr:
- Intensive sand mixer 2 MT batch size with auto-matic PLC controlled sand, bentonite, betacoal & water adding.
- 40 MT/Hr horizontal fludized bed sand cooler.
- Dust collector 30 HP.
- Polygon screen 40 MT/Hr.
- Overhead Magnetic seperator & Magnetic pully 700 mm.
- Knocknout 1200 * 1200 mm.
Moulding
Disa Arpa
- 1 set
- 40 Mould/Hr
- Box size 950*1000*250
HPML
- 1 set
- 60 Mould/Hr
- Box size 950*1000*250
Lost-foam
- 1 set
- 10 Mould/Hr
- Box size 1450*1200*1200

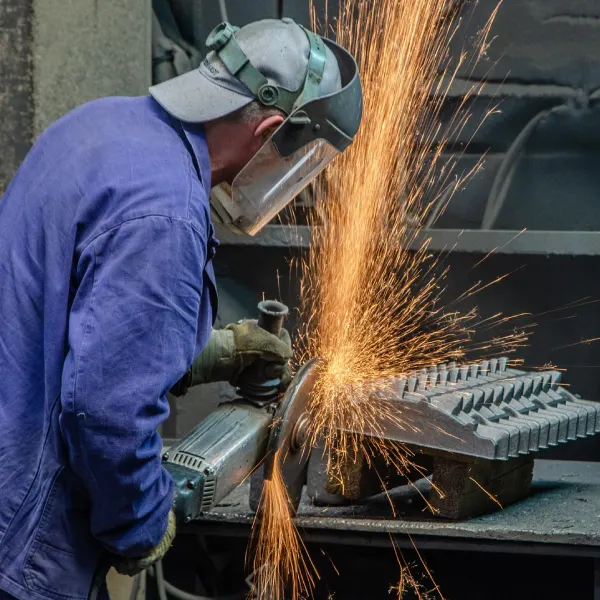

Fettling
Hanger Type
- 72 inches
- 1 Nos
Table Type
- 72 inches
- 1 Nos
Tumbler
- 48 inches
- 1 Nos
Pneumatic Chippers, Welding machine, and Swing, Bench, Pencil and Angle Grinders.
Heat-treatment Facility
Stress relieving, annealing, and quenching Facility for steel, Mn steel, and SG iron.
- PLC control electric furnace
- Time temperature recording Facility
- Furnace size 1500*1500*2000 mm
- Furnace Capacity 5 Mt
- Quenching tank 50,000 LTS
- Fork crane 6 mt

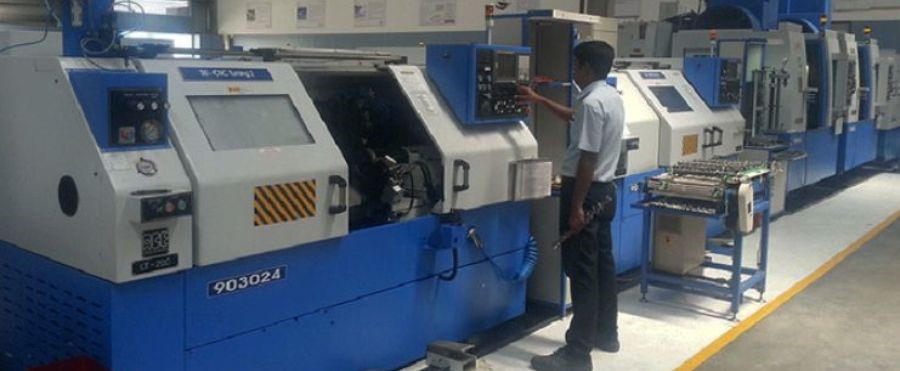

22 CNC MACHINES OF VARIOUS SIZES
 (1).jpg)
| VMC | 1000 MM*600 MM*500 MM | 1 Nos |
| VMC | 1200 MM*650 MM*600 MM | 2 Nos |
| VMC | 600 MM*450 MM*400 MM | 2 Nos | VMC | 450 MM*450 MM*400 MM | 3 Nos |
| HMC | 500 MM*500 MM*550 MM | 1 Nos |
| VTL | 450 Z Turning Dia 800 MM | 4 Nos | VTL | 750 Z Turinnig Dia 1100 MM | 3 Nos |
| VTL | 350 Z Turning Dla 650 MM | 1 Nos |
| CNC Turning | 1200 Z Turning Dia 800 MM | 3 Nos |
| CNC Turning | 600 Z Turning Dia 400 MM | 2 Nos |

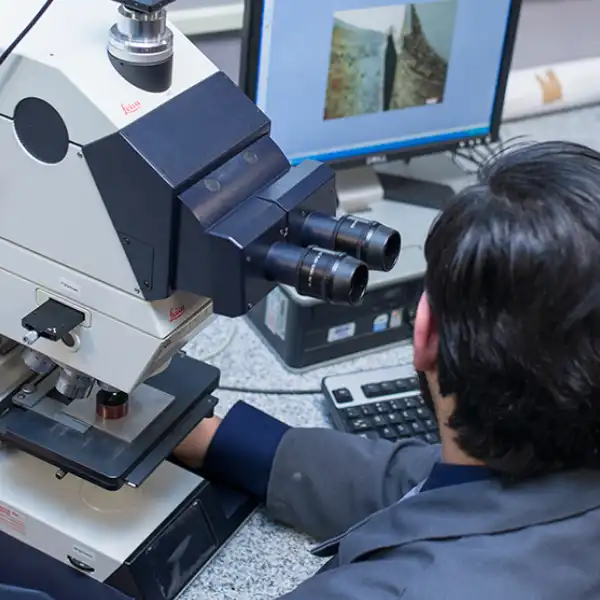

Microstructure Testing
- 1000x magnification Microscope
- Auto Analysis software
- Photography arrangement
- Polishing machine
- Comparative charts

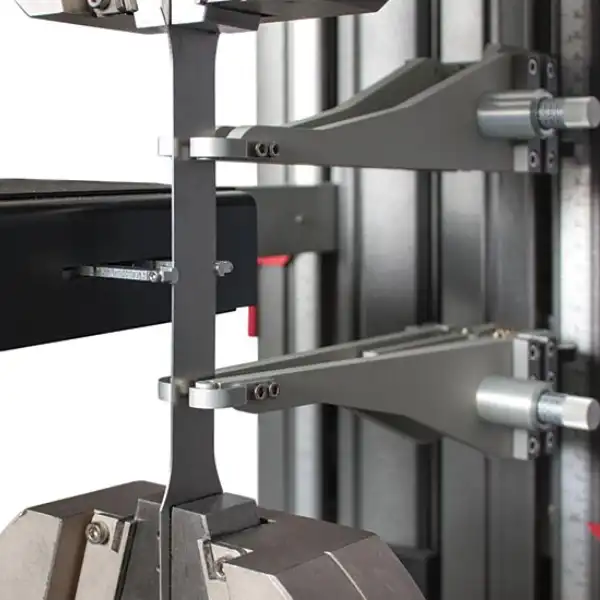

Mechanical Testing
- Computerized Universal Testing Machine 40 MT
- Digital Impact Tester with Sub zero testing up to -32 deg. C
- Hardness Tester Rockwell
- Computerised hardness tester BHN 3000 KGF brinell
- Portable Hardness Tester
- Shadow graph
Chemical Testing
- Spectrometer
- Carbon Silicon Analyser
- Wet Testing Facility for C, Mn, Si, P,
- Fe-Mn & Fe-Si.
Non-Destructive Testing (NDT)
- MPI
- Liquid Penetration Test
- Ultrasonic Testing Machine
- Radiography.
Metrology
- Cordinate Mesuring Machine CMM
- Cordinate Mesuring Gauge (faro gauge)
- Height Gauge Digital
- Height Gauge Digital
- Bore Gauge Digital
- Micro Meter Digital
- Vernier Calliper Digital
- Pistal Calliper Digital
- Scale
- Surface Table

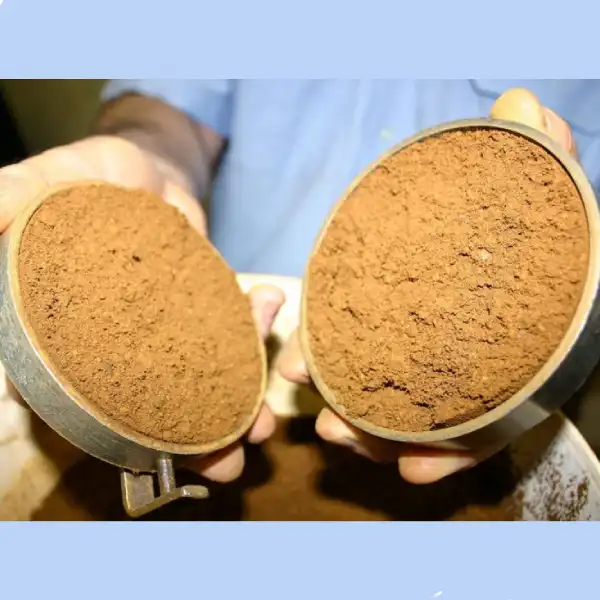

Sand Testing
- Moisture Tester
- Permeobility Tester
- GCS Tester
- Shatter index Tester
- Wet Tensile
- Compatibility Tester
- Sieve Shaker
- Moisture Tester
- Permeobility Tester
- GCS Tester
- Shatter index Tester
- Wet Tensile
- Compatibility Tester
- Sieve Shaker
Painting Facility
We have dust free, humidity & temperature controlled paint room
- Spray, Brush & Dip Painting
- Curing Oven Upto 300 Degree
- Professional Painter
- DFT meter
